Crosswalk to community standards

Integration into a shared knowledge graph such as the NFDI4Objects graph depends on a consumer being able to reach our statements through vocabularies they already understand, without loading LADO first. That is the purpose of the subclass chain below: every local class terminates in a CIDOC CRM class, and temporal structure is expressed in OWL-Time rather than in local properties.

That claim is worth checking rather than asserting, because it is easy to lose. lado:DatingModel originally sat beneath prov:Plan alone, which is an external vocabulary but not CIDOC CRM — a CRM-only consumer could see the datings and not the method that produced them. It now also sits beneath crm:E29_Design_or_Procedure, the CRM class for a documented procedure.

Namespaces

Subclass chain into CIDOC CRM

Rows for classes reached through CRMdig continue past the extension into CIDOC CRM itself, because the axioms that carry them there are restated in the vocabulary file — see the note under crmdig below.

Each row gives the complete path, not just the immediate parent, because the immediate parent is often another local class and hides where the chain actually terminates. Where a class has two superclasses the chain branches and both paths are listed: lado:FindspotDating reaches crm:E52_Time-Span on one and time:ProperInterval on the other. A CRM-only consumer sees a time-span, an OWL-Time consumer sees a proper interval, both are true at once, and neither needs LADO to recognise the node.

Relations between the entities use CRM properties directly in their intended sense, rather than local equivalents:

The last row exists because typing a node is not the same as making it readable. Before it was added, a consumer working only in CIDOC CRM could follow a findspot to its time-span — all 41 of them — and then find the span empty, because the years hung solely behind OWL-Time. The two CRM properties carry the interval bounds as xsd:gYear, so the dating can be read without OWL-Time at all.

They are rounded to whole years, as time:inXSDgYear is. The exact position stays in time:numericPosition; these two triples are the bridge into CRM, not the authoritative figure.

flowchart LR
    LADO["lado:<br/><b>local extension</b><br/>only what the standards do not cover"]
    crm["CIDOC CRM<br/>places, time-spans,<br/>activities, dimensions<br/><i>10 class(es) anchored</i>"]
    LADO --> crm
    time["OWL-Time<br/>instants, positions,<br/>time reference systems<br/><i>4 class(es) anchored</i>"]
    LADO --> time
    crmdig["CRMdig<br/>the computation<br/>that produced a dating<br/><i>1 class(es) anchored</i>"]
    LADO --> crmdig
    prov["PROV-O<br/>activity, plan, agent,<br/>derivation<br/><i>2 class(es) anchored</i>"]
    LADO --> prov
    geo["GeoSPARQL<br/>geometry<br/>(off by default)"]
    LADO -.-> geo
    dcat["DCAT<br/>the dataset snapshot"]
    LADO -.-> dcat
    skos["SKOS<br/>notations and<br/>loose matches"]
    LADO -.-> skos
    dcterms["Dublin Core<br/>titles, dates, sources"]
    LADO -.-> dcterms
    pleiades["Pleiades<br/>ancient places<br/>as external identifiers"]
    LADO -.-> pleiades

    class LADO local
    class crm,crmdig crm
    class time time
    class prov,geo,dcat,skos,dcterms,pleiades ext

    classDef local fill:#e8eef7,stroke:#4a6b96,stroke-width:1px,color:#12181f
    classDef crm fill:#efe7f5,stroke:#7a5a96,stroke-width:1px,color:#12181f
    classDef time fill:#e3f2ec,stroke:#3f8a70,stroke-width:1px,color:#12181f
    classDef ext fill:#f3f1ec,stroke:#8a857a,stroke-width:1px,color:#12181f
    classDef io fill:#faf3e3,stroke:#a8872e,stroke-width:1px,color:#12181f

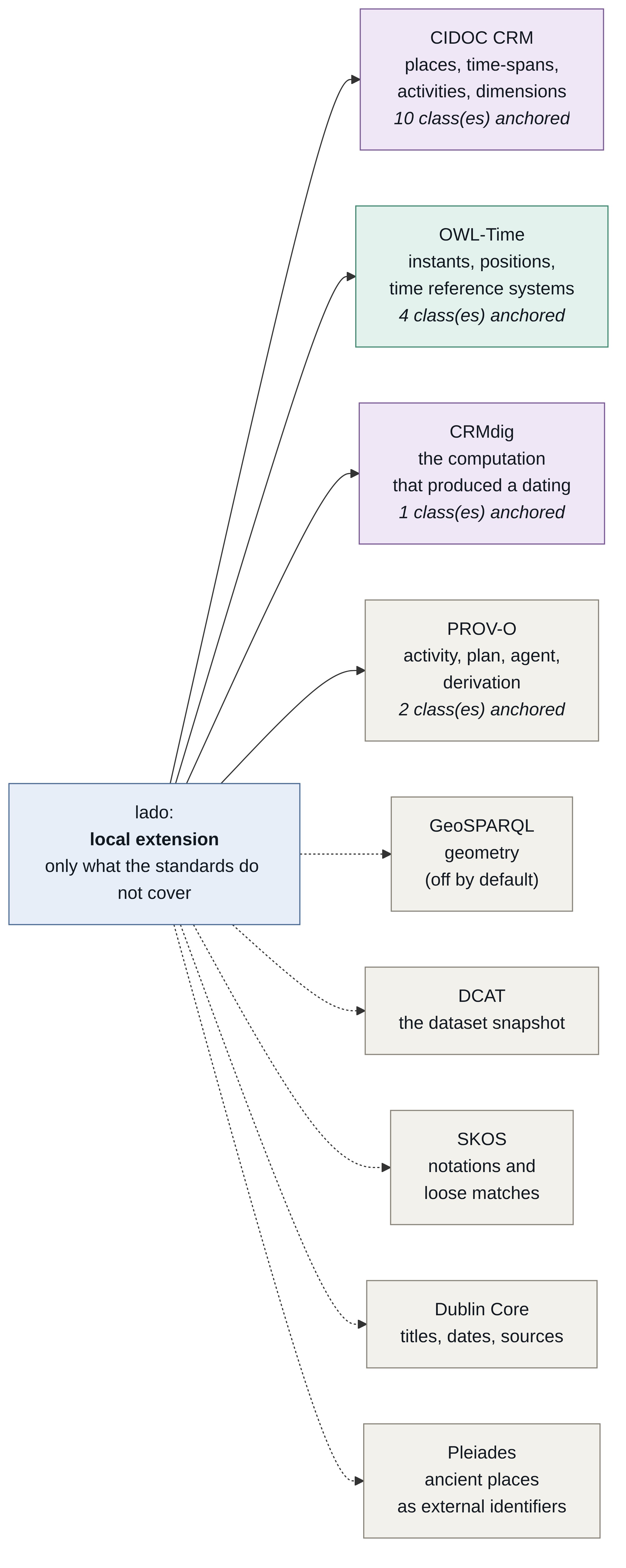

Which vocabulary carries what. The local extension exists only where the standards are silent; a solid edge means one of our classes actually hangs from that vocabulary.

_{JPG · SVG · Mermaid source — generated, do not edit.}

flowchart LR
    subgraph ours["this repository"]
        direction TB
        FS["lado:Findspot<br/>41 findspots<br/><i>URI = sha256(name)[0:6]</i>"]
        DSITE["lado:DiscoverySite<br/>0 sites"]
        FS -->|crm:P89_falls_within| DSITE
    end

    AL["archaeology.link<br/><i>loc_discoverysite_1.ttl</i><br/>the sites are referenced,<br/>not re-asserted"]
    PL["Pleiades<br/>29 sites carry<br/>an ancient-place URI"]
    N4O["NFDI4Objects<br/>knowledge graph<br/><i>target for the bundle</i>"]

    DSITE ==>|same URI| AL
    DSITE -->|lado:pleiadesID| PL
    ours ==>|IPSDatedSites-bundle.ttl| N4O

    class FS,DSITE local
    class AL,PL,N4O ext

    classDef local fill:#e8eef7,stroke:#4a6b96,stroke-width:1px,color:#12181f
    classDef crm fill:#efe7f5,stroke:#7a5a96,stroke-width:1px,color:#12181f
    classDef time fill:#e3f2ec,stroke:#3f8a70,stroke-width:1px,color:#12181f
    classDef ext fill:#f3f1ec,stroke:#8a857a,stroke-width:1px,color:#12181f
    classDef io fill:#faf3e3,stroke:#a8872e,stroke-width:1px,color:#12181f

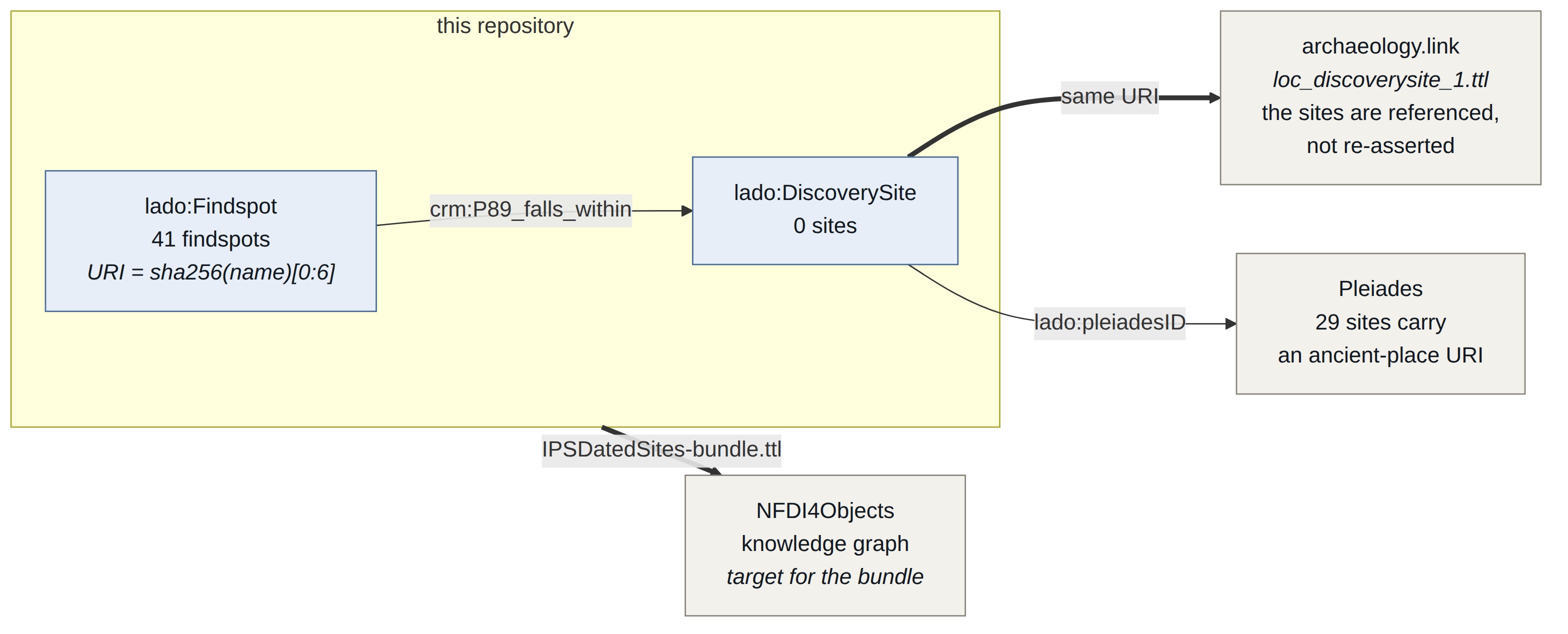

What makes this Linked Data rather than only RDF. The sites are referenced under the URIs archaeology.link already publishes, not re-asserted under new ones.

_{JPG · SVG · Mermaid source — generated, do not edit.}

flowchart BT
    lado_Location["lado:Location"]
    crm_E53_Place["crm:E53_Place"]
    lado_Location -->|subClassOf| crm_E53_Place
    lado_DiscoverySite["lado:DiscoverySite"]
    lado_DiscoverySite -->|subClassOf| lado_Location
    lado_Findspot["lado:Findspot"]
    lado_Findspot -->|subClassOf| lado_Location
    lado_DatedTimeSpan["lado:DatedTimeSpan"]
    crm_E52_Time_Span["crm:E52_Time-Span"]
    lado_DatedTimeSpan -->|subClassOf| crm_E52_Time_Span
    time_ProperInterval["time:ProperInterval"]
    lado_DatedTimeSpan -->|subClassOf| time_ProperInterval
    lado_FindspotDating["lado:FindspotDating"]
    lado_FindspotDating -->|subClassOf| lado_DatedTimeSpan
    lado_DatingInstant["lado:DatingInstant"]
    time_Instant["time:Instant"]
    lado_DatingInstant -->|subClassOf| time_Instant
    lado_DatingInstant -->|subClassOf| crm_E52_Time_Span
    lado_DatingTimePosition["lado:DatingTimePosition"]
    time_TimePosition["time:TimePosition"]
    lado_DatingTimePosition -->|subClassOf| time_TimePosition
    crm_E54_Dimension["crm:E54_Dimension"]
    lado_DatingTimePosition -->|subClassOf| crm_E54_Dimension
    lado_YearScale["lado:YearScale"]
    time_TRS["time:TRS"]
    lado_YearScale -->|subClassOf| time_TRS
    crm_E73_Information_Object["crm:E73_Information_Object"]
    lado_YearScale -->|subClassOf| crm_E73_Information_Object
    lado_DatingModel["lado:DatingModel"]
    prov_Plan["prov:Plan"]
    lado_DatingModel -->|subClassOf| prov_Plan
    crm_E29_Design_or_Procedure["crm:E29_Design_or_Procedure"]
    lado_DatingModel -->|subClassOf| crm_E29_Design_or_Procedure
    lado_DatingActivity["lado:DatingActivity"]
    prov_Activity["prov:Activity"]
    lado_DatingActivity -->|subClassOf| prov_Activity
    crmdig_D10_Software_Execution["crmdig:D10_Software_Execution"]
    lado_DatingActivity -->|subClassOf| crmdig_D10_Software_Execution
    lado_Figure["lado:Figure"]
    crm_E36_Visual_Item["crm:E36_Visual_Item"]
    lado_Figure -->|subClassOf| crm_E36_Visual_Item
    lado_PlotRow["lado:PlotRow"]
    lado_PlotRow -->|subClassOf| crm_E36_Visual_Item
    lado_IndependentTerminus["lado:IndependentTerminus"]
    crm_E5_Event["crm:E5_Event"]
    lado_IndependentTerminus -->|subClassOf| crm_E5_Event
    lado_ColourAxis["lado:ColourAxis"]
    lado_ColourAxis -->|subClassOf| crm_E36_Visual_Item
    class lado_ColourAxis,lado_DatedTimeSpan,lado_DatingActivity,lado_DatingInstant,lado_DatingModel,lado_DatingTimePosition,lado_DiscoverySite,lado_Figure,lado_Findspot,lado_FindspotDating,lado_IndependentTerminus,lado_Location,lado_PlotRow,lado_YearScale local
    class crm_E29_Design_or_Procedure,crm_E36_Visual_Item,crm_E52_Time_Span,crm_E53_Place,crm_E54_Dimension,crm_E5_Event,crm_E73_Information_Object crm
    class time_Instant,time_ProperInterval,time_TRS,time_TimePosition time
    class crmdig_D10_Software_Execution,prov_Activity,prov_Plan ext

    classDef local fill:#e8eef7,stroke:#4a6b96,stroke-width:1px,color:#12181f
    classDef crm fill:#efe7f5,stroke:#7a5a96,stroke-width:1px,color:#12181f
    classDef time fill:#e3f2ec,stroke:#3f8a70,stroke-width:1px,color:#12181f
    classDef ext fill:#f3f1ec,stroke:#8a857a,stroke-width:1px,color:#12181f
    classDef io fill:#faf3e3,stroke:#a8872e,stroke-width:1px,color:#12181f

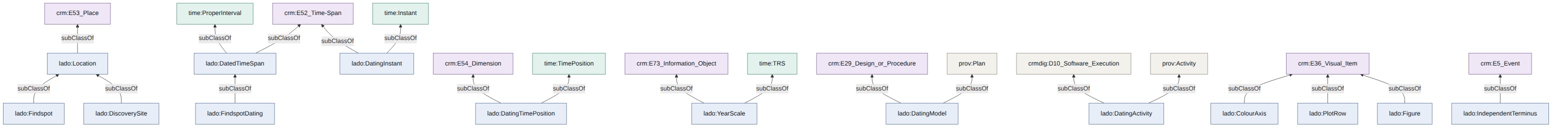

Every path ends in an external vocabulary. That is the whole claim of the crosswalk.

_{JPG · SVG · Mermaid source — generated, do not edit.}

Per-vocabulary notes

crm — http://www.cidoc-crm.org/cidoc-crm/

CIDOC CRM is the integration layer. Every class minted here reaches a CRM class through rdfs:subClassOf, so a consumer that understands only CRM still sees places, time-spans and visual items without needing to load the LADO vocabulary. Findspots attach to their sites with crm:P89_falls_within and to their datings with crm:P4_has_time-span, both of which are standard CRM properties used in their intended sense.

time — http://www.w3.org/2006/time#

OWL-Time carries the temporal semantics. Interval boundaries are time:Instant nodes reached through time:hasBeginning and time:hasEnd. Each instant carries a time:TimePosition with a decimal time:numericPosition, because the computed boundaries are not whole years — forty of forty-one rows have a fractional part, and rounding them away would discard exactly the precision the model produces. A rounded time:inXSDgYear is supplied alongside for consumers that read calendar years only. Note that time:intervalStarts and time:intervalFinishes are NOT used: they relate an interval to another interval, not to an instant, and an earlier version of this export misused them in that way.

prov — http://www.w3.org/ns/prov#

PROV-O records how the intervals came to exist. Each dating is generated by a prov:Activity whose qualified association names a prov:Plan holding the model parameters, so the parameters are stated once rather than repeated on every row. Note the namespace: the published discovery-site file (2019 release) binds prov: to http://www.w3.org/ns/prov-o/, which is not the PROV-O namespace and leaves its six provenance predicates pointing at terms that do not exist. This export uses http://www.w3.org/ns/prov# and does not reproduce that error.

geo — http://www.opengis.net/ont/geosparql#

GeoSPARQL carries the coordinates. This export used to emit none, on the grounds that the published discovery-site dataset already has a position for these places and a second one would compete with it. That reasoning held for a graph meant only to be merged alongside the published file, and it fails for the two things built on this one: a map, and a query page that runs rdflib in the browser. Neither can federate out to another dataset, so silence there is not neutrality but an empty map. The coordinates are therefore emitted by default on a geometry node of their own, typed geo:Geometry and sf:Point, carrying prov:wasDerivedFrom to the snapshot they came from and a comment saying plainly that they are not asserted to be the same point as the published geometry. The position sits on the discovery site rather than the findspot, because that is where the source records it: the four Bregenz findspots share one coordinate, and copying it down to each of them would invent four distinct places. Use –no-geometry for the merge-alongside case.

dcat — http://www.w3.org/ns/dcat#

DCAT describes the export as a dataset. Because the time-span URIs are deliberately not versioned, their values change when the source data change; the dated dataset node is therefore what a reader cites when they need a fixed state.

dcterms — http://purl.org/dc/terms/

Dublin Core Terms supplies title, source, creation and issue dates on the dataset node.

skos — http://www.w3.org/2004/02/skos/core#

SKOS is used narrowly: skos:notation retains the readable slug of each findspot alongside its hashed URI, so that a broken link can still be diagnosed, and skos:closeMatch relates the local year scale to the Gregorian reference system.

samian — http://data.archaeology.link/data/samian/

The namespace for resources under our own control, at data.archaeology.link. Discovery-site nodes in this namespace are already published and are only referenced here; findspots, datings, plot rows, figures and the model are new.

lado — http://archaeology.link/ontology#

The local ontology, extended here with the classes and properties that CIDOC CRM and OWL-Time do not supply — chiefly the separation between an archaeological dating and its presentation, and the quantities specific to this statistical model.

pleiades — https://pleiades.stoa.org/places/

Pleiades identifiers are carried as an add-on where they exist, which is for 14 of 41 rows. A caveat: the source database stores them as floating-point values, so the identifiers arrive with a trailing ‘.0’. This export casts them to integers. The published discovery-site file does not, which is why all 280 of its Pleiades links are unreachable.

owl — http://www.w3.org/2002/07/owl#

Used for the ontology declaration and for version information.

xsd — http://www.w3.org/2001/XMLSchema#

Supplies the literal datatypes.

Which instances carry a CIDOC CRM type

Every class in this vocabulary reaches CIDOC CRM, but that is a weaker statement than it sounds, because not every node in the graph is an instance of one of those classes. The honest position:

Forcing the last four groups into CIDOC CRM would be worse modelling than leaving them alone: a reference system is not an E55 Type, and an owl:Class is not an E1 CRM Entity in any useful sense. What matters is not that every node carries a CRM type but that a CRM-only consumer can reach everything it needs, which is what the property bridge above secures.

Every instance reaches CIDOC CRM

The rule this export holds to is stricter than it first appears: every instance of an application class carries a CIDOC CRM type, whether directly or through an extension that is itself anchored in CRM. It is not enough for the local classes to have CRM superclasses on paper — the instances have to arrive there.

Properties are exempt. Where an OWL-Time or PROV-O property expresses the relation better, it is used; only classes are held to the rule.

Two consequences shaped the model. Interval boundaries became lado:DatingInstant and lado:DatingTimePosition rather than bare time:Instant and time:TimePosition nodes, so that they could be anchored in crm:E52_Time-Span and crm:E54_Dimension without asserting anything about OWL-Time in general. And the PROV qualified-association pattern was dropped: a reification node is not a thing in the world and CIDOC CRM has no class for one. The two statements it carried are now made directly, with prov:used and crm:P33_used_specific_technique, which say the same and are valid in both vocabularies.

The rule is checked on every run rather than assumed, because a new class without a CRM superclass breaks nothing visible and would otherwise go unnoticed. The bundle builder counts the instances and refuses to write a file that contains an unanchored one.

Notes for knowledge-graph integration

Three properties of this export matter for anyone merging it:

It is additive over published data. The only statements made about samian:loc_ds_* nodes are an rdfs:label and, where present, the ancient name and Pleiades identifier. No published node is re-typed, and no geometry is asserted for a place that already has one. A merge cannot therefore contradict the discovery-site dataset.

Absence is explicit. lado:undefinedMeasure distinguishes a value that was computed and found not to exist from one that nobody has calculated. Without it, the open-world assumption would flatten the two.

Presentation is separable. Everything that exists only because a figure was drawn hangs off lado:PlotRow and lado:Figure. A consumer interested solely in the archaeology can ignore both classes and lose nothing, and — more importantly — will not mistake a drawing convention for a dating claim.

One caveat inherited from the published data rather than introduced here: loc_discoverysite_1.ttl (2019 release) binds prov: to http://www.w3.org/ns/prov-o/, which is not the PROV-O namespace. All six of its provenance predicates consequently denote nothing. This export uses the correct namespace and does not reproduce the error, which means the two files disagree about what prov:wasGeneratedBy denotes until the published file is corrected.
